Understand the job.
We review available drawings, scope, jurisdiction, and fabrication milestones before agreeing deliverables.
SINCE 2005 BUILT FOR FABRICATORS
Structural steel,
ready for the shop.
Structural and miscellaneous steel detailing with Tekla Structures, plus coordinated design support for fabricators, EPC contractors and detailing partners across the United States and Canada.
DESIGN · CONNECTIONS · DETAILING CALIBER / 2005—
ENGINEERING INTENT → FABRICATION CLARITYEXPLORE ↓
The handoffs between design, connections, and detailing can cost a fabrication team time. We bring those conversations together early so the shop has clearer information when it needs it.
ESTABLISHED 2005EPC · FABRICATORS · DETAILING PARTNERSU.S. + CANADA PROJECT TEAMS
02 THE COMBINED OFFERING
One team across
the critical handoffs.
Supporting EPC companies, large steel fabricators and detailing partners with structural design, connection coordination, steel detailing and project-specific PE review where licensed and appropriate.
Resolve the interfaces.
Design decisions, connection information, and model inputs stay connected to the drawing workflow.
Help the shop move.
Shop and erection drawings, CNC data, DXF, other agreed fabrication files, BOQ and ABM support the fabricator and procurement team.
03 CAPABILITIES
Built around
your scope.
Supporting project teams in New York City and State, the East Coast, California and the West Coast, and Western Canada. Bring us the whole package or the part that needs focused support.
Explore our structural steel detailing workflow →
01 / SERVICE
Structural Steel Detailing
Structural and miscellaneous steel detailing with Tekla Structures: coordinated shop drawings, erection drawings, CNC data and material reports.
02 / SERVICESteel Design
Structural design support coordinated with project requirements and fabrication realities.
03 / SERVICEConnection Design
Connection engineering and documentation aligned with the structural intent.
04 / SERVICESteel Fabrication Support
CNC, DXF and BSWX files, ABM, part lists, and fabrication and field bolt lists prepared from the agreed steel model.
05 / SERVICEPE Stamp Coordination
Engineering review and professional stamping where project scope and jurisdiction allow.
04 PROJECT GALLERY
Show the work.
Explain the thinking.

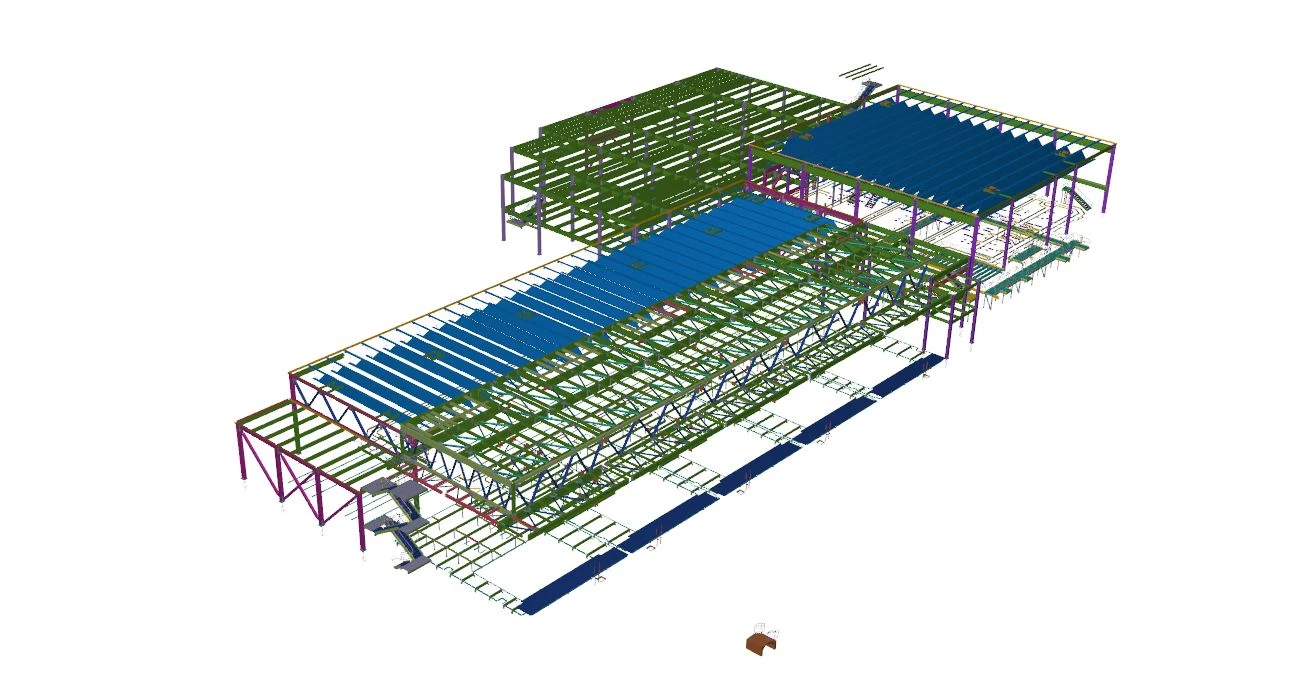

Explore steel models for buildings, schools, refineries, pipe racks and industrial skids, with selected projects across North America and beyond.
Explore the projects ↗05 DELIVERABLES & TOOLS
Ready for your
fabrication workflow.
Outputs and file formats are agreed for each job and the fabricator’s equipment.
From model to machine.
Shop and erection drawings (E-sheets), CNC, DXF and BSWX files, plus other agreed fabrication outputs.
Know what to buy.
BOQ, ABM and part lists help your team plan material purchasing and track quantities. Fabrication and field bolt lists support the shop and erection teams.
Connected tools.
We use Tekla Structures and coordinate deliverables with Trimble Connect, AutoCAD, and other Autodesk formats as required by the project.
Software and export requirements are confirmed with your team before work starts. Engineering review and PE stamping depend on project jurisdiction and licensed professional scope.
06 QUICK ANSWERS
A few things clients
usually ask.
Clear answers before you share your project documents.
Can Caliber provide design and detailing together?
Yes. We can scope structural design support, connection coordination, and steel detailing as one planned workflow. PE review or stamping depends on the project jurisdiction and licensed professional scope.
What fabrication files can you provide?
Shop and erection drawings (E-sheets), CNC, DXF and BSWX files, part lists, and fabrication and field bolt lists, together with other agreed reports. We confirm equipment and file requirements for each project.
Can you support material procurement?
We can prepare BOQ and ABM reports based on the agreed model and scope to help plan quantities and purchasing.
Which projects and regions do you focus on?
We focus on structural steel fabricators and detailing partners serving the New York area, California, and Western Canada, including Vancouver. Tell us your project location and schedule.
Can you help when our detailing team is overloaded?
We can discuss a defined overflow scope, deliverables, review responsibilities, and handoff schedule with your project team.
07 PROJECT ENQUIRY
Tell us what
you’re building.
Tell us the project type, size, steel scope, and schedule. We can discuss the right deliverables and the next steps together.
Call +1 (760) 588-2207 ↗08 WHERE WE SUPPORT TEAMS
Close to your priorities.
We focus our conversations on fabricators and detailing partners in the New York area, California, and Western Canada, including Vancouver. Tell us where the project is and what your team needs.
